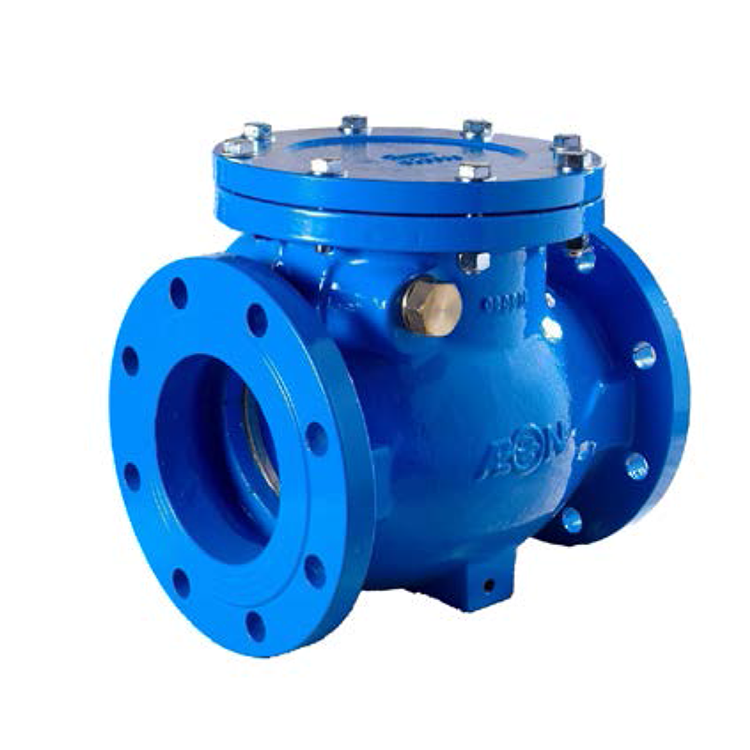

Fitted with a conventional single disc, our range of specialist swing check valves is ideal for low velocity water and wastewater pumping systems.
Suitable for all water pipelines, our swing check valves, or non-return valves, are ideal for water pipelines where there is a requirement to prevent reverse flow. Specifically designed with a top entry for ease of inspection and maintenance, without the need to remove it from the pipeline, the valve's unique globe shape provides smooth, full flow with low pressure drop.
| Valve type | Standard swing check valve |
|---|---|
| Diameter range | DN50 - DN400 |
| Maximum operating pressure | 16 bar / PN16 |
| Coating | 300 microns FBE, external and internal |
| Flange | EN 1092-2 PN10 & PN16 |
