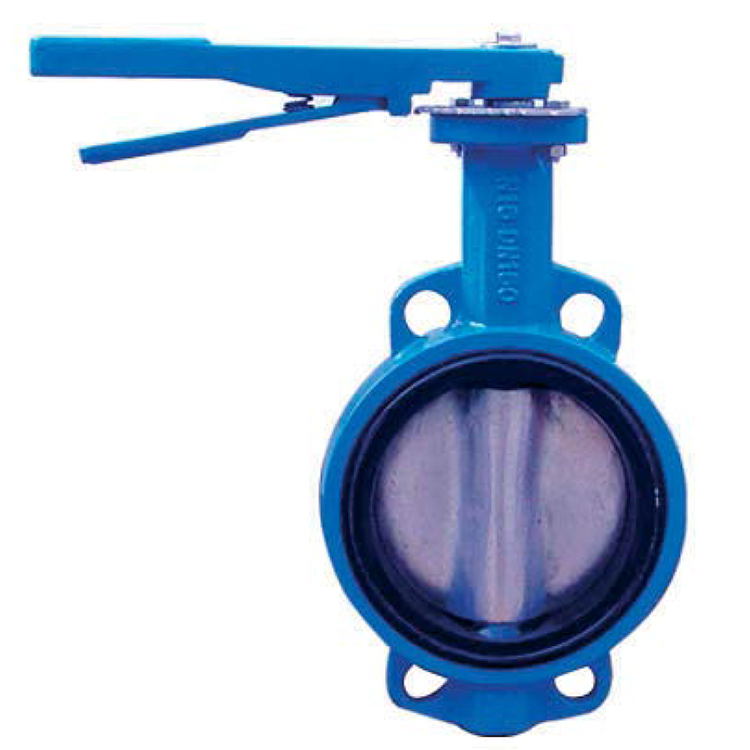

Wafer butterfly valve

Available with various disc and seat material variations to suit a wide range of applications, the water butterfly valves should be installed with their shaft in the horizontal position with the lower edge of the disc opening downstream.

Fitted with a replaceable rubber liner that fully isolates the body for maximum corrosion resistance.

Valve type Wafer butterfly valve
Diameter Range DN50 - DN1200
Maximum operating pressure 16 bar / PN16
Coating 300 microns FBE
Flange EN 1092-2 PN10 & PN16
