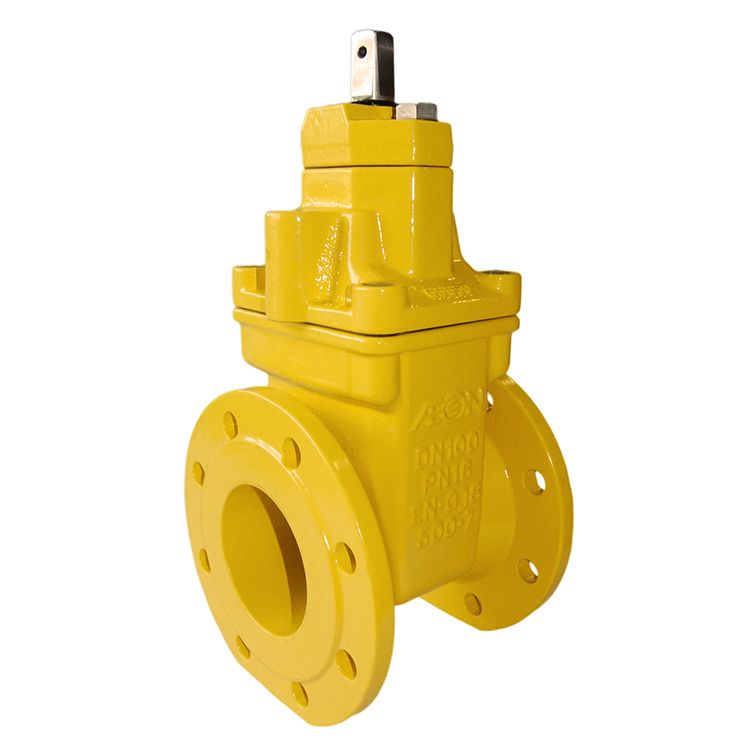

OptiValve Plus BS - Gas gate valve

Our state of the art range of Type B BS valves are innovative solutions for all your gas pipeline requirements.

Manufactured from high grade components with high performance features for strength and increased valve lifetime, our BS OptiValve Plus are designed with a 3-part casting, which allows parts to be replaced on a live pipeline without the need to close the valve.  The fully NBR encapsulated patented double seated wedge within the valve, offers optimum gas flow control o preserve the integrity of your pipeline.

Valve type Type B
Diameter range DN50 - DN400
Maximum operating pressure 7 bar double block and bleed with vent plug
16 bar without vent plug available on request
Coating Epoxy 250 μm FBE coating, external and internal
PUR available upon request
Flange EN 1092-2 PN10 & PN16
Approvals GIS/V7-1 Class A/B, EN 13774 Class 1/2, CE (PED 97/23/EC), AGA,
DVGW
