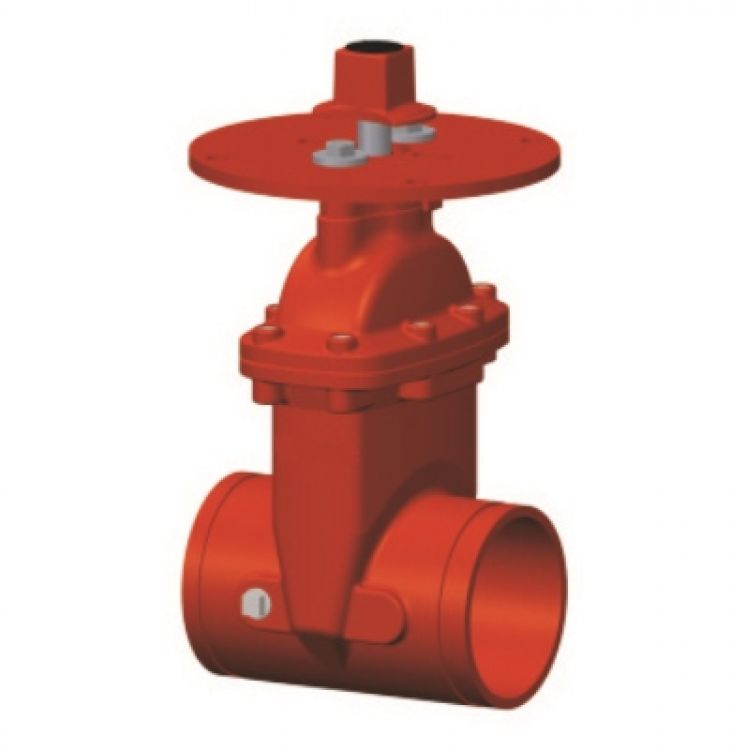

NRS Resilient Seated Gate Valve - Grooved ends

A range of reliable non-rising stem resilient seated gate valves ideally suited for fire protection applications. Supplied with grooved ends.

Specifically manufactured with an EPDM encapsulated wedge for maximum leak-tightness, the through bore prevents any build up of debris at the bottom of the valve seat. Built for maximum corrosion protection and durability.

Diameter range 2,5” - 12”
Connection Grooved Ends to AWWA C606 Standard or Metric Dimension
Maximum Operating Pressure 300 PSI / 20,7 bar for 2,5”-12”
Maximum Working Pressure 42 °F to 180 °F (6 °C to 82 °C)
Coating 300 μm FBE coating, external and internal to AWWA C550
Certification UL Listed and FM Approved
