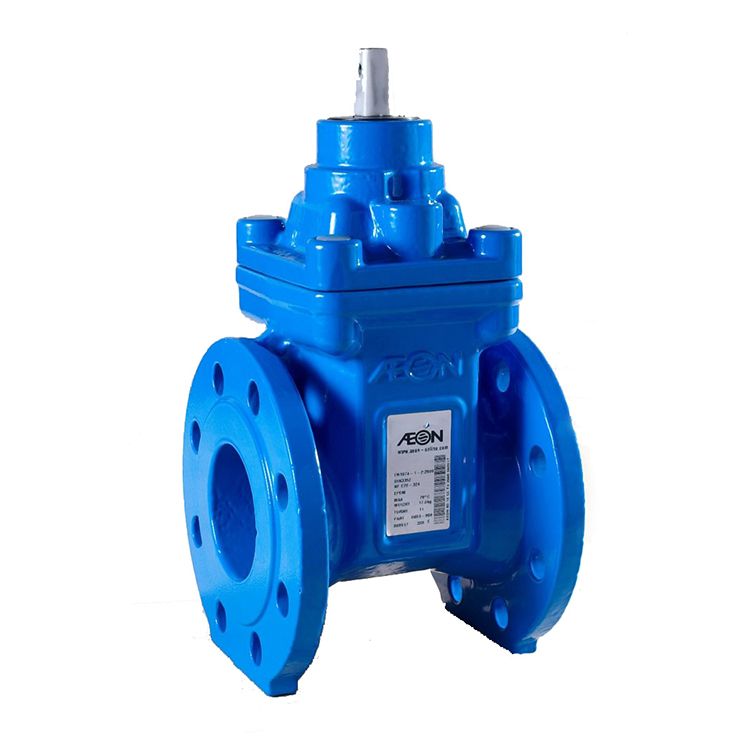

OptiValve F4 & F5 - Water gate valve

Our specialised range of Type A, F4 and F5 valves offers the shortest and longest face to face dimensions to fit your specific water pipeline network

Ideally suited for all potable water and wastewater pipelines, our range of F4 and F5 OptiValve are robust and easy to operate. They are specifically designed with a 2-part casting and an EPDM encapsulated patented double seated integral ductile iron wedge-shaped gate for optimum leak-tightness.

Valve type Type A
Diameter range DN40 - DN300
Maximum operating pressure 16 bar / PN16
Approvals WRAS, BSI Kitemark, Russian Certificate of Conformity, Hygienic Certificate PZH
Coating 250 microns, FBE coating external and internal
Flange EN1092-2 PN10 and PN16
